Large Condensing Unit
One year warranty.
Heat Rejection: Air Cooled
Temperature Range: -15°C to +5°C
Cooling Capacity: 9 kW @ -15°C
Flow Rate: Up to 8 GPM @ 28 PSI available
Fluid: 50/50 EGW
SSEGW Tank Capacity: 29 Gallons
Power Requirement: 480V, 3 Phase, 60Hz, 18A
Frame Dimensions: 27” W x 53” D x 60” H
Pump Type: SS Positive Displacement
Wetted Materials: Hard-plumbed Copper, Nickel, and Brass
Approximate System Weight: 685 lbs
Coolant Supply & Return Lines: 1 1/2” NPT
Lead Time: 8-10 weeks

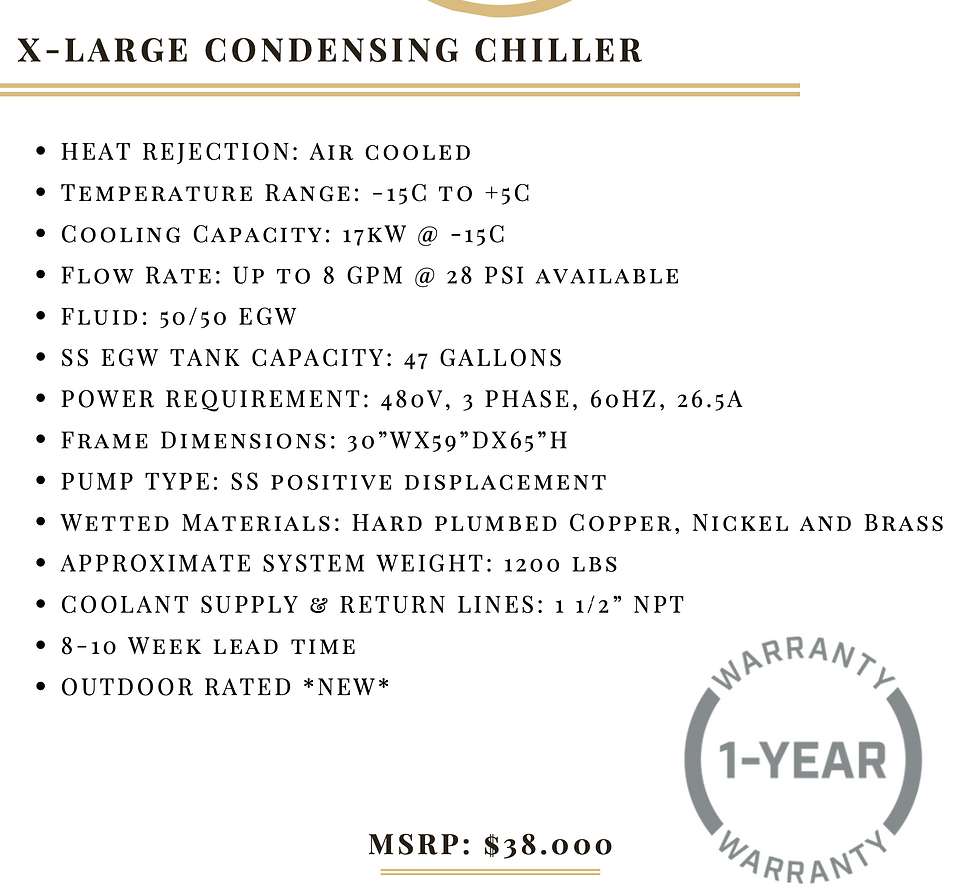

X-Large Condensing Unit
One Year Warranty
HEAT REJECTION: Air Cooled
Temperature Range: -15°C to +5°C
Cooling Capacity: 17 kW @ -15°C
Flow Rate: Up to 8 GPM @ 28 PSI available
Fluid: 50/50 EGW
SSEGW Tank Capacity: 47 Gallons
Power Requirement: 480V, 3 Phase, 60Hz, 26.5A
Frame Dimensions: 30” W x 59” D x 65” H
Pump Type: SS Positive Displacement
Wetted Materials: Hard-plumbed Copper, Nickel, and Brass
Approximate System Weight: 1200 lbs
Coolant Supply & Return Lines: 1 1/2” NPT
Lead Time: 8-10 weeks
OUTDOOR RATED NEW



Large Process Chiller (Material Columns and Solvent Tanks)

HEAT REJECTION: Water Cooled
Temperature Range: -80°C to +25°C
Cooling Capacity: 2.5 kW @ -80°C
VFD for fluid pressure control
Flow Rate: Up to 8 GPM @ 50 PSI available
Fluid: Novec 7100
Power Requirement: 480V, 3 Phase, 60Hz, 29.5A
Frame dimensions: 31” W x 48” D x 64” H inches
Pump Type: SS magnetically coupled turbine with VFD for programmable fluid pressure
Expansion tank size/Type: 5 gallon, Sealed Stainless Steel
Approximate System Weight: 1500 lbs
Coolant Supply & Return Lines: 3/4” NPT
Lead Time: 12-14 weeks
